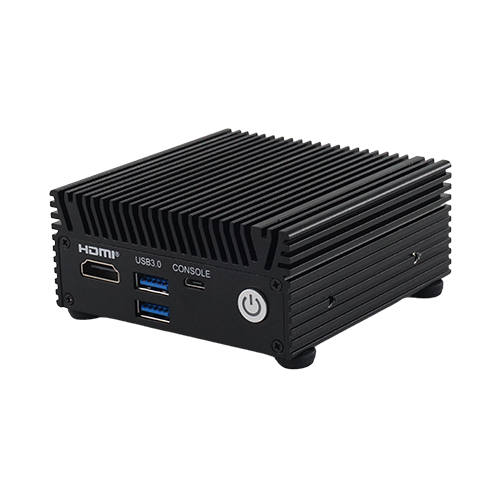

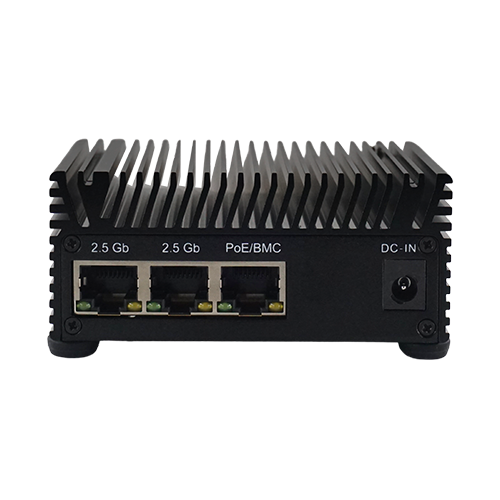

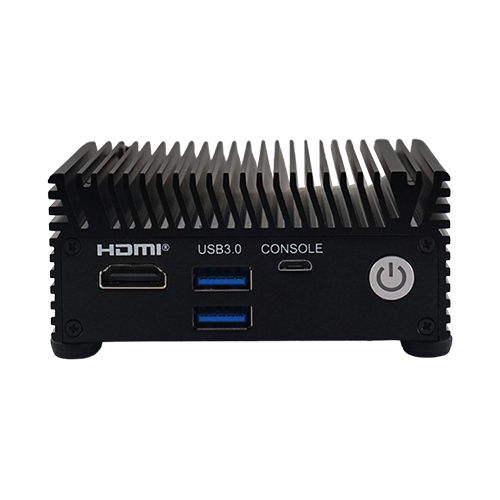

EE-1000

Intel Celeron N5105

extremeEdge|Fanless | Made by Simply NUC

Form

  1. Intel Celeron N5105
  2. Intel UHD Graphics
  3. Soldered LPDDR4 32GB Max Up to 2933MHz
  4. 256GB Primary storage (up to 2TB)
  5. 1x HDMI
  6. 2x USB-A 3.2
  7. 1x mDP
  8. 2x 2.5GbE
  9. 1x BMC
  10. 12V DC 48W Power Supply

Features

The first of its kind, NANO-BMC out-of-band management in a small form factor enables remote management of edge devices at the extremeEDGE. Remote access to hardware even when powered off (useful for troubleshooting). Increased uptime, faster problem resolution and reduced support costs. Improved power management and resource utilisation.

Made by Simply NUC.

Processor

Intel® Celeron® Processor N5105 4M Cache, up to 2.90 GHz

Turbo boost

2.90 GHz

Cores / threads

4 Cores / 4 Threads

Operating temp.

Ambient Operating Temp

Graphics

Max Resolution 3840 x 2160  |  Intel UHD Graphics

Memory

Soldered LPDDR4 | 32GB Max | Up to 2933MHz

Storage

256GB Primary storage (up to 2TB)

Networking

2x 2.5GbE, 1x BMC

Inputs

1x USB-C, 2x USB-A 3.2, 3x USB-C 2.0

Power supply

12V DC 30W Power Supply

Configuration

Customise your NUC with the options below and they will all come pre-installed.
