Long Life Mini

LLM1r3RKB Now Shipping

  • Dual Core
  • Cores 2, Threads 4
  • AMD® Radeon™ Vega 3
  • Passmark Coming Soon...

Now Shipping

Product Build Options

Memory (RAM)*

This unit comes with one 4 GB DDR4 RAM card. Upgrade now and get a second card to increase your RAM as high as 32 GB at a discounted price.

M.2 Storage Option*

This unit comes pre-installed with a 128GB M.2 NVMe PCIe SSD primary storage device. Upgrade for more SSD storage at a discounted price.
*See our legal page for our SSD size classification.

Operating System*

This is the operating system that will be installed to the primary storage device. Simply NUC will install the OS to the storage device with the highest performance. Contact Sales if you want your OS installed to a specific storage device or if you do not see your desired OS on this list.

8265 Wifi Option*

This unit has an optional 802.11ac Wireless 8265 Radio. We can also install a surface mount antenna kit under the lid or an external dual-band 5dBi antenna kit (which includes internal coax cables).

Extended Support Service*

This unit comes with 1 FREE year of Simply NUC support service, which includes part and labor support as well as outbound shipping. Optionally, this coverage can be extended to 3 or 5 years.

mDP Port Accessories

Here is a list of available accessories that connect to a mDP port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Second mDP Port Accessories

Here is a list of available accessories that connect to a mDP port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 2.0 Port Accessories

Here is a list of available accessories that connect to a USB 2.0 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 3.1 Port Accessories

Here is a list of available accessories that connect to a USB 3.1 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Mouse and Keyboard Pack

These are USB mouse and keyboard combo packages.

USB OS Restore Key

This is a USB storage device with a copy of the installation of the OS chosen for this model.

Review Your NUC

LLM1r3RKB

Long Life Mini

Volume Quote
LLM1r3RKB Long Life Mini

Base CPU Frequency

1.5 GHz

Turbo Boost

2.8 GHz

Cores & Threads

Cores 2, Threads 4

Graphics

AMD® Radeon™ Vega 3

Max Memory

64GB

Networking

1x 10/100/1000 Mbps RJ45 Ethernet

Max Resolution

3840 x 2160

Video Output

2x mDP

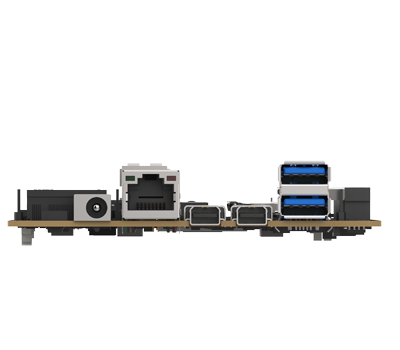

I/O

2x USB 2.0 (front), 2x USB 3.1 gen type A (rear)

FLEXIBLE CUSTOMIZATION

The Simply NUC LLMr3RK (code named Red Oak) is a mini computer built with an AMD® Ryzen™Embedded R1305G processor, delivering innovation in a small space for embedded solutions. A wireless-AC card can be installed into one of two M.2 slots, leaving the other available slot for a lightning fast SSD. The bottom of thechassis is designed to accommodate mounting options including DIN rail and VESA plate. And there are board SKU optionsfor embedded designs. Finally, whether it’s Windows® 10, Linux, or another OS, these systems are verified to run a widerange of operating systems so you can build the exact solution your clients want.

AFFORDABLE MAINSTREAM PERFORMANCE

Red Oak is a mini computer that’s small in size with features that make it optimal for your embedded solutions. And its price point makes Red Oak affordable for mainstream performance usages with a tight budget. It supports a wide powersupply range (12 to 19Vdc), offers a gigabit Ethernet port, and 4 USB ports for I/O flexibility. And with two mini-DisplayPort ports Red Oak is ideal for dual-display digital signage usages.

BUILD EMBEDDED SOLUTIONS

Built to stand the test of time, Simply NUC is committed to supporting the manufacture and sales of Red Oak in the same form, fit, and function for seven years from launch (Aug 2020). Red Oak also comes in a board SKU option with a serial port and USB header enabling other embedded usages such as kiosk, vending machines, and POS.

  1. AMD® Ryzen™ R1305G Processor
  2. AMD® Radeon™ Vega 3 Graphics
  3. 2x DDR4-2400 SODIMMs, 1.2V, 64GB max
  4. Wireless AC 802.11ac and Bluetooth (option)
  5. 2x front USB 2.0 ports
  6. 2x rear USB 3.1 type A ports
  7. 2x Mini Display Ports
  8. 1x 10/100/1000 Mbps RJ45 Ethernet
  9. Audio combo mic in/line out
  10. Power button
  11. 12V – 19V power supply
