Wall Street Motherboards

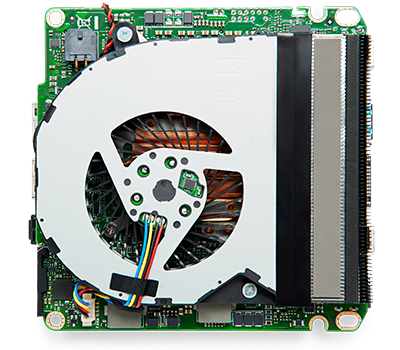

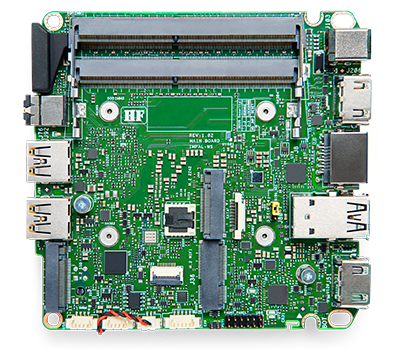

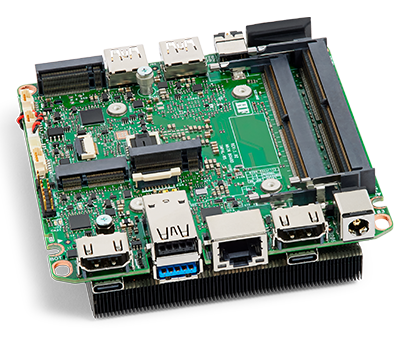

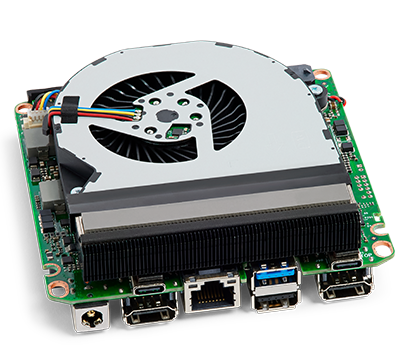

Intel® NUC 12 Pro
NUC12WSBi7 Full
- Intel® Core™ i7-1260P
- Cores 12, Threads 16
- Intel® Iris™ Xe Graphics
- Passmark Coming Soon...
NUCNUC12WSBi7 Intel® NUC 12 Pro
Base CPU Frequency
2.2GHz
Turbo Boost
4.8GHz Turbo
Cores & Threads
Cores 12, Threads 16
Graphics
Intel® Iris™ Xe Graphics
Max Memory
64GB
Networking
1x Intel 2.5Gb LAN (i225), Intel Wi-Fi 6E AX211
Max Resolution
7680x4320
Video Output
2x HDMI 2.0b, 2x DP 1.4a (via Thunderbolt 4)
I/O
3x USB 3.2 Type-A, 2x Thunderbolt 4, 1x 3.5mm Audio Jack
A New Generation in Business Computing
As modern-day businesses grow and expand, their IT infrastructure must evolve with them and the all-new 12th Gen Intel® Core™ i7 processor is here to keep you at the forefront of technology. Whether operating computationally complex serial operations for machine learning or executing multiple threads simultaneously, the all-new hybrid core architecture dynamically adjusts utilization of its 12 cores to optimize performance to keep you ahead in the market. With support for up to 64GB of DDR4 memory, up to 8TB of storage, options for port expansion, and vPro on select SKUs, Wall Street gives you the configuration options you need to bring your IT deployments to the next level.
Intrinsic Diversity, Consistent Return
Wall Street boards offer a wide variety of use cases due to its small 4 by 4-inch size, these boards can be embedded into kiosks, digital signage displays or industrial applications all while taking up minimal space and power. Wall Street natively provides dual Thunderbolt 4 ports and four USB type-A ports to connect the peripherals you need, from printers to headsets or webcams. The intrinsic diversity of Wall Street lets you customize your application while promising consistent performance return.
Invest in Wall Street and Elevated your Embedded Development
Streamline your embedded systems by integrating a serial port expansion panel to effortlessly operate within your industrial application and enjoy zero downtime with 24/7 and fault-tolerant operation with DC transient voltage suppression. Expand your networking capabilities with headless display and the 2.5Gb LAN port to give your edge devices or embedded solutions network redundancy and security. Dual HDMI with persistent display functionality and dual Thunderbolt 4 ports can power four 4K displays simultaneously giving you superior video quality and flexibility to create immersive digital signage. Make the smart investment in Wall Street and elevate your designs today.
- Intel® Core™ i7-1260P
- Intel® Iris® Xe Graphics
- Dual Channel DDR4-3200 SO-DIMM Sockets
- 1x M.2 SSD slot
- 3x Front USB 3.2 Gen2
- 19VDC 120W power supply connector
- 2x Thunderbolt 4
- 2x HDMI 2.0b
- 1x Intel 2.5Gb LAN
- USB 2.0
Product Brief
