NUC10EGC Full

Everglades 2

Intel Celeron N5105, Simply NUC Everglades 2

Rugged|Fanless|Made by Simply NUC

The Everglades 2 NUC from Simply NUC comes equipped with an Intel Jasper Lake Celeron® N5105 processor, providing reliable, cost-effective performance in a lightweight, space-saving form factor, making it perfect for many usages. Despite its small size, Everglades 2 is loaded with I/O. From its two HDMI ports and single DisplayPort to its six Type-A and single Type-C USB ports, Everglades 2 supports all the peripherals you need to get the job done.



Thanks to its rugged, fanless chassis, and a plethora of I/O options and storage capabilities, Everglades 2 is ideal for both indoor and outdoor deployments, such as kiosks, intelligent vending, digital signage, and much more! Further enhance your Everglades 2 NUC with the optional PoE+ kit, allowing you to streamline your deployment without sacrificing performance or functionality, and providing you with a rugged, reliable, and robust system.



Fitted with dual 1Gb LAN ports as well as Intel AC7265 dual-band Wi-Fi with Bluetooth 4.2, Everglades 2 provides flexibility and reliability when connecting to your networks. Everglades 2 is a feature-rich rugged system with plenty of customizability to meet your exact specifications, so upgrade your IT infrastructure with an Everglades 2 Rugged NUC today.

Read more

Industrial SystemsRugged Intel

Form

1.3kg | 28 × 22 × 15 cm
  1. Intel Celeron N5105 Processor
  2. Intel UHD Graphics 600
  3. Dual channel DDR4 SODIMMs, max 32GB
  4. 64GB Soldered eMMC
  5. M.2 Support for PCIe SSD
  6. 2.5” SATA Slot for HDD or SSD
  7. Intel Dual Band AC-7286 + Bluetooth 4.2
  8. SD Card Slot Supporting up to 512GB
  9. 4x USB 3.0 Ports
  10. 1x USB Type-C Port
  11. 2x 1Gb LAN (1x Optional PoE)
  12. 2x USB 2.0 ports
  13. 1x DisplayPort 1.4
  14. 12-19V Input
  15. Kensington Lock
  16. 2x HDMI 2.1 TMDS
  17. 3.5mm Audio Jack
  18. Consumer IR Receiver
Everglades 2 Front Angle Left

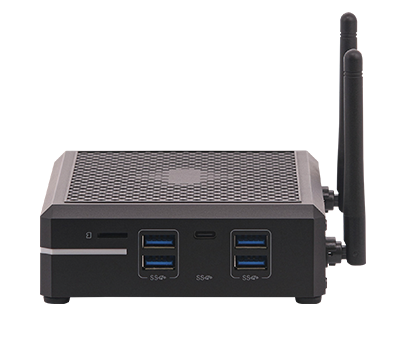

Everglades2 Side2 Master Web Photos 400x350
Everglades 2 Back
Everglades2 FrontStraightOn Master Web Photos 400x350

Specification

Processor

Intel® Celeron® Processor N5105 4M Cache, up to 2.90 GHz

Turbo boost

2.90 GHz

Cores / threads

4 Cores, 4 Threads

Operating temp.

0–50°C Ambient Operating Temp

Graphics

Max Resolution 4096x2160  |  Intel UHD Graphics 600

Dimensions

1.3kg | 28 × 22 × 15 cm

Memory

32GB

Storage

64GB Soldered eMMC

Networking

Intel Dual Band AC-7286 + Bluetooth 4.2, 2x LAN port

Inputs

4x USB 3.0, 1x USB Type-C Port, 2x USB 2.0, 1x Micro SD Card Slot, 1x 3.5mm Audio Jack, Consumer IR Reciever

Power supply

12-19V input range | 19V 24W power supply included

Certified OS

Windows 10 IoT | Windows 11 64-bit (Pro, Home and IoT) | Linux (Ubuntu)
View tech specView marketing pack

Certificates & regulations

Safety

EN IEC 62368-1 | EN IEC 62311:2020 | EN 50665:2017

EMC / RF

FCC CFR Title 47, Chapter I, Part 15, Subparts B | EN 55032 | EN 55024 | EN 61000-3 | EN 62311 | ETSI EN 300 328 | ETSI EN 301 489-1 | ETSI EN 301 489-3 | ETSI EN 301 489-17 | ETSI EN 301 893 | ETSI EN 300 440

Configuration

Customise your NUC with the options below and they will all come pre-installed.

Product Build Options
+£0.00

This unit comes with one 4 GB DDR4 RAM card. Upgrade now and get a second card to increase your RAM as high as 32 GB at a discounted price.

Memory (RAM) *

+£0.00

This unit can be configured with an additional M.2 storage device. Get the most storage out of your NUC by adding a second storage device to your order.
*See our legal page for our SSD size classification.

M.2 Storage Option

+£0.00

This unit can be configured with an additional 2.5″ storage device. Get the most storage out of your NUC by adding a second storage device to your order.
*See our legal page for our SSD size classification.

2.5″ Secondary Storage Option

+£0.00

Operating System *

+£0.00

The PoE module prevents configurations implementing the 2.5” drive.

Add-In Card

+£0.00

This unit comes with 3 FREE years of Simply NUC support service, which includes part and labor support as well as outbound shipping.

Extended Support Service *

+£0.00

Here is a list of available accessories that connect to an HDMI port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

HDMI Port Accessories

+£0.00

Here is a list of available accessories that connect to a DP port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

DP Port Accessories

+£0.00

Here is a list of available accessories that connect to a USB Type-C port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB Type-C Port Accessories

+£0.00

Here is a list of available accessories that connect to a USB 3.0 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 3.0 Port Accessories

+£0.00

These are USB mouse and keyboard combo packages.

Mouse and Keyboard Pack

+£0.00

This is a USB storage device with a copy of the installation of the OS chosen for this model.

USB OS Restore Key
