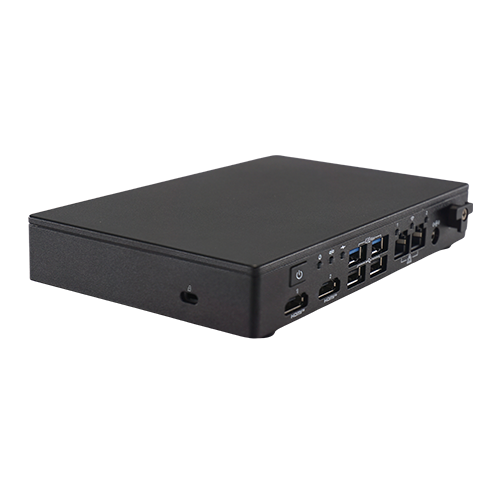

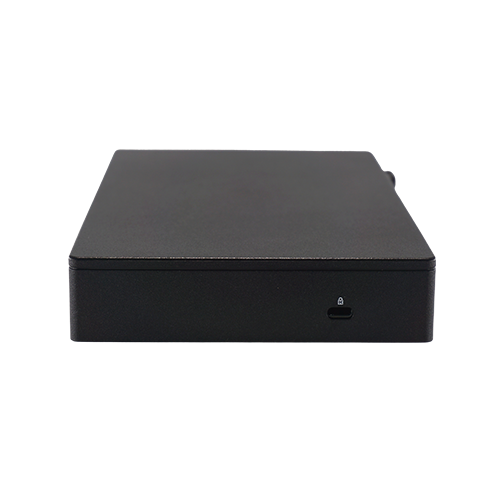

Bravo Canyon

Rugged NUC

NUC13BRKP2
  • Intel® Processor N50
  • 2 Cores, 2 Threads
  • Intel® UHD Graphics, with IPU
  • Passmark Coming Soon...

Now Shipping

Product Build Options

Memory (RAM)*

M.2 Gen4 Storage Option*

This unit comes pre-installed with a 256GB Gen4 PCIe M.2 SSD primary storage device. Upgrade for more SSD storage at a discounted price.
*See our legal page for our SSD size classification.

Chassis Upgrade Options

Operating System*

This is the operating system that will be installed to the primary storage device. Simply NUC will install the OS to the storage device with the highest performance. Contact Sales if you want your OS installed to a specific storage device or if you do not see your desired OS on this list.

Extended Support Service*

This unit comes with 3 FREE years of Simply NUC support service, which includes part and labor support as well as outbound shipping. Optionally, this coverage can be extended to 5 years.

HDMI Port Accessories

Here is a list of available accessories that connect to an HDMI port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Second HDMI Port Accessories

Here is a list of available accessories that connect to an HDMI port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 2.0 Port Accessories

Here is a list of available accessories that connect to a USB 2.0 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 3.2 Port Accessories

Here is a list of available accessories that connect to a USB 3.2 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Mouse and Keyboard Pack

These are USB mouse and keyboard combo packages.

USB OS Restore Key

This is a USB storage device with a copy of the installation of the OS chosen for this model.

Review Your NUC

Bravo Canyon

Rugged NUC

Volume Quote
NUC13BRKP2 Rugged NUC

Base CPU Frequency

Turbo Boost

3.4 GHz Turbo

Cores & Threads

2 Cores, 2 Threads

Graphics

Intel® UHD Graphics, with IPU

Max Memory

16GB

Networking

2x 2.5Gb LAN, Intel® Wi-Fi 6E + Bluetooth 5.3

Max Resolution

7680 × 4320

Video Output

2x HDMI 2.1 TMDS

I/O

2x USB 3.2 Gen2 Type-A, 2x USB 2.0 Type-A

Built to be Embedded

Bravo Canyon, the latest Intel-based Rugged NUC, is available in three processor variants, from the dual core Celeron N50, to a quad core Atom x7425E, built to provide compute power wherever you need it, from industrial applications in the factory, to kiosk applications in the airport terminal, Bravo Canyon was built to be embedded. Choose between two fanless chassis options, the internal, or external heatsink to best fit your deployment requirements. Bravo Canyon features all of its out of the box I/O, status LEDs and power button on the same side, with an optional I/O expansion panel on the side, allowing you to fit your unit into the tightest of spaces.

Highly Customizable

Featuring three processor variants, two different chassis options, up to 16GB of DDR5 memory, and up to 8TB of NVMe Gen3 storage, your Bravo Canyon units can be fully customized to fit your deployments needs. Equipped with dual 2.5Gb LAN ports, dual HDMI 2.1 ports and four USB-A ports, Bravo Canyon has the I/O options you need to succeed. If the out of the box configuration isn’t enough, you can upgrade your units with the expansion panel on the side, giving you the flexibility you need to simplify your infrastructure.

Designed to Last

Both Bravo Canyon fanless chassis options are IP50 rated, making them ideal for dusty environments, paired with their ability to operate 24/7, makes it the perfect choice for a warehouse or factory deployment, where reliability and longevity are key. Develop your system on Bravo Canyon, based on its 5-year availability, you can be assured that for longer to deploy projects, you have the consistent equipment you need to create a robust IT infrastructure. Get connected in remote areas, thanks to the built-in SIM card slot and 30×42 M.2 socket allowing for an optional LTE kit on Bravo Canyon, giving you access to a 4G network wherever you need it.

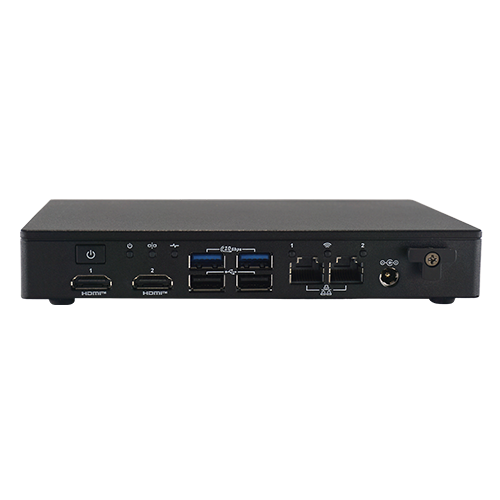

  1. Intel® Processor N50
  2. Intel® UHD Graphics
  3. DDR5-4800 SO-DIMM, Max 16GB
  4. 1x M.2 22×80 SSD slot
  5. 1x M.2 30×42 slot
  6. Intel® Wi-Fi 6E + Bluetooth 5.3
  7. 2x HDMI 2.1 TMDS
  8. 2x USB 3.2 Gen2 Type-A
  9. 2x USB 2.0 Type-A
  10. 2x Intel 2.5Gb LAN (Intel i226)
  11. 20V power supply
  12. Kensington lock
