Sale!

Ruby 2

Ruby 2 R7

CBM2r7RB
  • AMD® Ryzen™ R7-5700U
  • Cores 8, Threads 16
  • AMD® Radeon Graphics
  • Passmark Coming Soon...

Please contact sales if you would like to purchase this unit

Contact Sales

CBM2r7RB Ruby 2 R7

Base CPU Frequency

1.8GHz

Turbo Boost

4.3GHz

Cores & Threads

Cores 8, Threads 16

Graphics

AMD® Radeon Graphics

Max Memory

64GB

Networking

Intel WiFi 6 AX200 + Bluetooth 5.0, 1x 2.5Gb Ethernet port, 1x 1Gb Ethernet port

Max Resolution

7680x4320

Video Output

1x DP 1.4a, 2x DP 1.4a (type-C), 1x HDMI 2.0a

I/O

2x USB 3.2 (front), 2x USB 2.0 (rear), 2x USB 3.2 Type-C

HIGH SPEED PERFORMANCE

Featuring the new AMD Ryzen™ 5700U mobile processor with Radeon™ graphics, and support for high-speed DDR4-3200 memory, Ruby 2 continues to bring unprecedented performance in a small form factor. At home, stream 4K video, play games, or finish your homework. At work, Ruby 2 keeps you productive—perfect for content creation, multitasking, and video conferencing. The new 5700U Ryzen processor will keep your Ruby 2 at peak performance when you need it, whatever the task.

FEATURE RICH FOR VERSATILITY

Ruby 2 supports up to four 4K displays at 60Hz simultaneously. Dual Ethernet with 2.5Gbps and 1Gbps speeds allow you to connect to multiple networks, with one port providing DASH support for remote management of your fleet of Simply NUC Mini PCs. Ruby 2 also features TPM for sensitive communications where encryption is required. Take advantage of Intel® Wi-Fi 6 with high-speed connectivity, enhanced for efficient bandwidth usage in environments with many connected devices. Ruby 2 has ample connections for all your peripheral devices with four front 10Gbps super speed USB ports plus two rear high-speed USB Type-A ports. Further enhance your I/O layout with lid expansions bringing RS-232, dual-HDMI or additional USB ports to accommodate your complex system designs. Paired with your choice of RAM, SSD and OS, Ruby 2 is ideal for a home office or entertainment system, an office PC or even an entry-level gaming rig, giving you the versatility you deserve.

EFFICIENT BY DESIGN

The new 5700U processor in Ruby 2 gives you unrivaled performance in a small 4”x4” package with little power consumption, making it the perfect device to drive up your productivity while driving down operating costs. Upgrade your compute power today with Ruby 2 from Simply NUC.

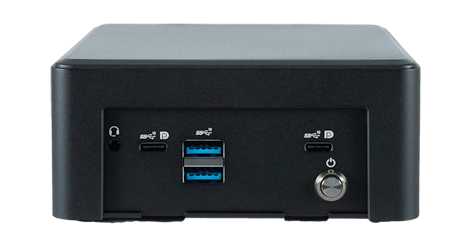

  1. AMD® Ryzen™ R7-5700U
  2. 2x DDR4-3200 SODIMMs, 64GB max
  3. M.2 22×80 for NVMe or SATA SSD
  4. Audio combo mic in / line out
  5. 2x DP 1.4a DP++(via USB 3.2 gen 2, type-C ports)
  6. 2x front USB 3.2 gen 2
  7. 19VDC 90W power supply adapter connector
  8. 2x rear USB 2.0
  9. 1x HDMI 2.0a
  10. 1x DP 1.4a
  11. 10/100/1000 Mbps RJ45 Ethernet (DASH)
  12. 10/100/1000/2500 Mbps RJ45 Ethernet
