NUC 11 Rugged Expandable Chassis Core i7 Compute Module

CMCR1ABA i7 Elk Now Shipping

  • 11th Generation Intel® Core™ i7-1165G7
  • Cores 4, Threads 8
  • Intel® Iris™ Xe Graphics
  • Passmark Coming Soon...

Shipping Now

i7 vPro Option

M.2 Storage Option*

This unit comes pre-installed with a 128GB M.2 SATA SSD primary storage device. Upgrade for more SSD storage or swap it for an NVMe PCIe M.2 SSD at a discounted price.
*See our legal page for our SSD size classification.

M.2 Secondary Storage Option

This unit comes pre-installed with a 64GB eMMC primary storage device. Upgrade for SSD storage at a discounted price.
*See our legal page for our SSD size classification.

Operating System*

This is the operating system that will be installed to the primary storage device. Simply NUC will install the OS to the storage device with the highest performance. Contact Sales if you want your OS installed to a specific storage device or if you do not see your desired OS on this list.

Extended Support Service*

This unit comes with 1 FREE year of Simply NUC support service, which includes part and labor support as well as outbound shipping. Optionally, this coverage can be extended to 3 or 5 years.

HDMI Port Accessories

Here is a list of available accessories that connect to an HDMI port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Second HDMI Port Accessories

Here is a list of available accessories that connect to an HDMI port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 2.0 Port Accessories

Here is a list of available accessories that connect to a USB 2.0 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 3.0 Port Accessories

Here is a list of available accessories that connect to a USB 3.0 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 3.1 Port Accessories

Here is a list of available accessories that connect to a USB 3.1 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Serial Port Accessories

Here is a list of available accessories that connect to a serial port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Review Your NUC

CMCR1ABA i7 Elk

NUC 11 Rugged Expandable Chassis Core i7 Compute Module

Volume Quote
CMCR1ABA i7 Elk NUC 11 Rugged Expandable Chassis Core i7 Compute Module

Base CPU Frequency

1.2 GHz

Turbo Boost

4.7 GHz Turbo

Cores & Threads

Cores 4, Threads 8

Graphics

Intel® Iris™ Xe Graphics

Max Memory

16GB

Networking

Intel® i219-LM 10/100/1000 Mbps RJ45 Ethernet, Bluetooth 5.1

Max Resolution

Video Output

2x HDMI 2.0a

I/O

1x front USB 3.1 gen 2 type A ports, 2x rear USB 3.1 gen 2 type A ports, 1x front port

MODULAR CUSTOMIZATION

Intel® NUC Elements are an entirely new way to design and build embedded solutions and Mini PCs. Compute module options along with a series of Intel-designed components, deliver the flexibility of modular computing letting you create the exact systems you want. Intel NUC Elements include compute module and chassis module options, allowing you to develop innovative solutions. Start with a compute module with the exact processor you need and plug it into your choice of chassis module. By transforming how systems can be built and serviced, Intel is once again revolutionizing computing in order to help you succeed. From embedded deployments to rugged systems in unique environments, to full systems in a business or vertical environment, the Intel NUC Elements let you deliver custom solutions with minimal R&D time.

RUGGED FEATURES

Intel® NUC 8 Rugged is a modular PC kit that’s small in size but not on toughness or reliability. It features a fanless, ventless design to minimize particle intrusion, so it’s built to survive environments most PCs can’t – from a busy factory floor to a dusty warehouse. And even without a fan, it can operate in temperatures from 0-40˚C to thrive in severe in-the-field conditions. And with the compute modules, systems are scalable from Celeron all the way up to Core i7 with vPro.

BUILD EMBEDDED SOLUTIONS

Housed in a small, quiet, fanless chassis that’s slim enough to fit almost anywhere, the NUC 8 Rugged can be easily integrated into digital solutions. The two chassis options provide flexibility in usage, and are qualified for 24/7 operation, making it the ideal PC solution to keep edge analytics, digital signage, or surveillance cameras up and running around the clock. All modules carry a 3-year warranty, for performance that’s designed to last.

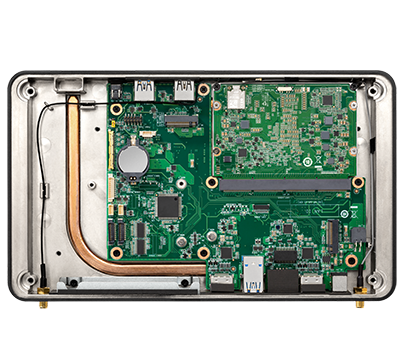

  1.  11th Generation Intel® Core™ i7-1165G7
    ( i7-1185G7 if vPro is selected)
  2.  Intel® Iris™ Xe Graphics
  3. 16GB LPDDR4X RAM
  4. M.2 2280 key M and 22×42/80 key M slot for PCIe x4 Gen3 NVMe / AHCI or SATA3 SSD
  5. 1x internal USB 3.0 header
  6. 2x internal USB 2.0 headers
  7. 2x RS232 serial port headers
  8. Kensington Lock with Base Security
  9. 1x front USB 3.1 gen 2 type A port
  10. 12 – 24V DC rear jack, internal 2×2 power connector (12 -24V
  11. Two HDMI 2.0a
  12. Intel® i219-LM 10/100/1000 Mbps RJ45 Ethernet
  13. 2x rear USB 3.1 gen 2 type A ports
